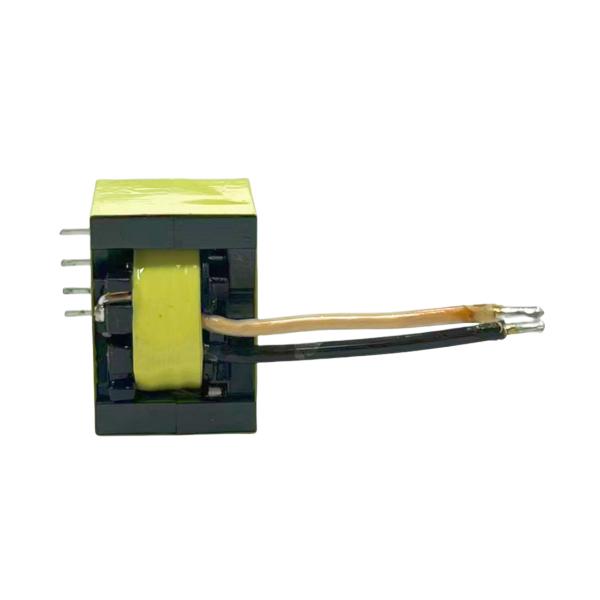

High Frequency Current Transformer Wiring With Pins PQ2014 For Charging
1.Product Description
The “PQ” in PQ2014 transformers stands for the shape of the iron core, i.e., the alternating arrangement of P and Q shapes. This core shape is commonly used in high frequency transformers and inductors.
2.Application
PQ2014 High Frequency Transformers commonly used in high-frequency transformers and inductors.PQ-type transformers are characterized by high efficiency, stability and energy saving, and occupy an important position in electronic equipment. It can flexibly adjust the output voltage according to the actual demand, meet the voltage requirements of different electronic equipment, and keep the output current stable, effectively isolate the input and output circuits to ensure the safety of the equipment.
| Electronic equipment |
computers, communication equipment, household appliances, etc |
| Industrial automation |
wide-bandwidth amplifiers, AC/DC machines and aerospace, etc |
| High requirements for voltage stability |
broadband amplifiers, AC/DC machines and aerospace |
| Power electronics equipment |
Inverters, power amplifiers, frequency converters, etc. |
3.Other Recommended Produtcs
| NO. |
Product Name |
TYPE |
Detailed Type |
| 1 |
High frequency transformers |
EE |
EE8.3, EE10, EE13, EE16, EE19, EE20, EE25, EE28, EE30, EE33, EE40, EE42, EE49, EE50, EE55, EE60, EE65, EE70, EE75, EE80, EE85 |
| EC/ER |
ER/EC20, ER/EC25, ER/EC28, ER/EC28, ER/EC29, ER/EC35, ER/EC40, ER/EC42, ER/EC49 |
| ETD |
ETD29, ETD35, ETD40, ETD49 |
| EF |
EF16, EF20, EF25 |
| EFD |
EFD15, EFD20/21, EFD25/26, EFD30 |
| EDR |
EDR2009, EDR2037, EDR2809, EDR2828, EDR3012, EDR3909, EDR4008 |
| EP |
EP7, EP10, EP13 |
| EPC |
EPC11.5, EPC13, EPC19, EPC25 |
| EQ |
EQ2512, EQ2610, EQ3209, EQ4013, |
| POT |
POT3016, POT3930 |
| PQ |
PQ2016, PQ2020, PQ2625, PQ2620, PQ3225, PQ3520, PQ3525, PQ3535, PQ4040, PQ49 |
| RM |
RM6, RM8, RM10, RM12, RM14 |
4.FAQ
Q1: Do you provide service for custom design products?
A: Yes, we have the R&D department for custom designs,welcome to send any of your custom specifications.
Q2: How about the quality?
A: Each pieces 100% tested before shipment. We offer 90-180 days quality assurance.
Q3: What is your lead time for samples and mass orders?
A: Usually 5-10 days for samples and 15-30 days for mass production, depending on the quantity and the raw material stock.
Q4: How about the quality?
A: Each pieces 100% tested before shipment. We offer 90-180 days quality assurance.
5.Customized
1. inductance;
2. input voltage and output voltage, output current.
3. turns of ratio ;
4. packing method.
5.Mounting Dimensions
6.Safety Requirements
7.Product Applications
The price of a product is mainly determined by the product parameters, the complexity of the product process, the raw material and the batch size.
